Toyota prius 3rd gen Center Airbag Sensor Assembly (L16)(R1)(S1)

Toyota Prius 3 ^rd Generation (XW30)

Center Airbag Sensor Assembly (L16)(R1)(S1)

L16 TERMINALS OF Center Airbag Sensor Assembly CONECTOR

Terminal No	Symbol (Pin Definition)	Wiring (Color Code) & Color	Electrical Paths
1	P2+	(Y-R) Yellow/Red	➳ LH1 3 ➔ H1 1 (P+) [Font Pasenger Side Squib Circuit]
2	P2-	(Y-G) Yellow/Green	➳ LH1 4 ➔ H1 2 (P-) [Font Pasenger Side Squib Circuit]
3	P-	(Y) Yellow	➳ LH1 2 ➔ H2 2 (PQ-) [Font Pasenger Side Squib Circuit]
4	P+	(Y-B) Yellow/Black	➳ LH1 1 ➔ H2 1 (PQ+) [Font Pasenger Side Squib Circuit]
5	D+	(Y-B) Yellow/Black	➔ L53 1 ⚯ z8 2 (D+) [Driving Side Squib Curcit]
6	D-	(Y) Yellow	➔ L53 2 ⚯ z8 1 (D-) [Driving Side Squib Curcit]
7	D2-	(Y-B) Yellow/Black	➔ L53 3 ⚯ z7 1 (D2-) [Driving Side Squib 2 nd Step Circuit]
8	D2+	(Y-R) Yellow/Red	➔ L53 4 ⚯ z7 2 (D2+) [Driving Side Squib 2 nd Step Circuit]
9	DK+	(Y-B) Yellow/Black	➔ L29 1 (DK+) [Lower No. 1 Instrument Panel Airbag Assembly]
10	DK-	(Y) Yellow	➔ L29 2 (DK-) [Lower No. 1 Instrument Panel Airbag Assembly]
11	_	_	_
12	_	_	_
13	CANH	(R) Red	➔ L95 5 ⬌ L95 3
14	GSW2	(B) Black	➔ 2A 45 ⇔ 2A 29 ➔ L5 29 (ABFS) [Power Management Control ECU]
15	_	_	_
16	_	_	_
17	P-A/B	(B) Black	➔ LL1 1 ➳ LI2 14 ➳ IM1 7 ➳ M2 5 (P-AB) [Passenger Seat Belt Warning Light Assembly]
18	_	_	_
19	_	_	_
20	_	_	_
21	IG2	(B) Black	➔ 2A 8 ➤ (IG) 10A Fuse [IGN]
22	CANL	(G) Green	➔ L95 16 ⟺ L95 14
23	PAON	(R) Red	➔ LL1 2 ➳ LI2 2 ➳ IM1 8 ➳ M2 2 (PAON) [Passenger Seat Belt Warning Light Assembly]
24	_GSW3	(R) Red	➔ 2A 46 ⇔ 2A 38 ➔ L19 24 (GS2) [Telematics Transceiver]
25	E1	(W-B) White/Black	➔ 2A 25 ⇔ 2B 6 ➔ L92 3 ⬌ L92 7 ➔ ▼ L3 (Ground Point) ➔ 2A 25 ⇔ 2B 4 ➔ L93 8 ⬌ L93 3 ➔ ▼ L1 (Ground Point) ➔ 2A 25 ⇔ 2A 24 ➔ L16 26 (E2) [Center Airbag Sensor Assembly]
26	E2	(W-B) White/Black	➔ 2A 24 ⇔ 2B 4 ➔ L93 8 ⬌ L93 3 ➔ ▼ L1 (Ground Point) ➔ 2A 24 ⇔ 2B 6 ➔ L92 3 ⬌ L92 7 ➔ ▼ L3 (Ground Point) ➔ 2A 24 ⇔ 2A 25 ➔ L16 25 (E1) [Center Airbag Sensor Assembly]
27	-SR	(B) Black	➳ AL9 2 ➔ A45 1 (-SR) [Front Airbag Sensor RH]
28	-SL	(B) Black	➳ AL6 2 ➔ A8 1 (-SL) [Front Airbag Sensor LH]
29	+SR	(W) White	➳ AL9 1 ➔ A45 2 (+SR) [Front Airbag Sensor LH]
30	+SL	(W) White	➳ AL6 1 ➔ A8 2 (+SL) [Front Airbag Sensor LH]

R1 TERMINALS OF Center Airbag Sensor Assembly CONECTOR

Terminal No	Symbol (Pin Definition)	Wiring (Color Code) & Color	Electrical Paths
1	PL-	(Y) Yellow	➔ R7 2 (L-) [Front Pretensioner LH]
2	_	(Y-B) Yellow/Black	➔ R7 1 (L+) [Front Pretensioner LH]
3	_	_	_
4	_	_	_
5	_	_	_
6	ICL-	(Y-B) Yellow/Black	➔ R14 2 (ICL-) [Curtain Shield Airbag Assembly Circuit LH]
7	ICL+	(Y) Yellow	➔ R14 1 (ICL+) [Curtain Shield Airbag Assembly Circuit LH]
8	BBL+	(G) Green	➔ R9 4 (BBL+) [Front Side Airbag Sensor Assembly LH]
9	SFL+	(Y-B) Yellow/Black	➔ R3 1 (SFL+) [Side Airbag Squib Circuit LH]
10	SFL-	(Y) Yellow	➔ R3 2 (SFL-) [Side Airbag Squib Circuit LH]
11	LBE+	(G) Green	➔ R4 2 (LBE+) [Front Seat Inner Belt Assembly LH]
12	LBE-	(V) Violet	➔ R4 1 (LBE-) [Front Seat Inner Belt Assembly LH]
13	LSP-	(G) G	➔ R4 3 (LSP-) [Front Seat Inner Belt Assembly LH]
14	LSP+	(R) R	➔ R4 4 (LSP+) [Front Seat Inner Belt Assembly LH]
15	BBL-	(R) Red	➔ R9 3 (BBL-) [Front Side Airbag Sensor Assembly LH]

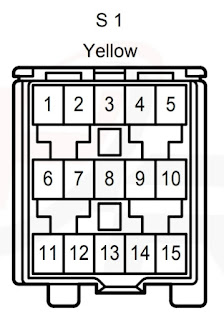

S1 TERMINALS OF Center Airbag Sensor Assembly CONECTOR

Terminal No	Symbol (Pin Definition)	Wiring (Color Code) & Color	Electrical Paths
1	_	_	_
2	_	_	_
3	_	_	_
4	PR+	(Y-B) Yellow/Black	➔ S6 1 (R+) [Front Pretensioner RH]
5	PR-	(Y) Yellow	➔ S6 2 (R-) [Front Pretensioner RH]
6	SFR-	(Y) Yellow	➔ S4 2 (SFR-) [Side Airbag Squib Circuit RH]
7	SFR+	(Y-B) Yellow/Black	➔ S4 1 (SFR+) [Side Airbag Squib Circuit RH]
8	BBR+	(G) Green	➔ S8 4 (BBR+) [Front Side Airbag Sensor Assembly RH]
9	ICR+	(Y) Yellow	➔ S11 1 (ICR+) [Curtain Shield Airbag Assembly Circuit RH]
10	ICR-	(Y-B) Yellow/Black	➔ S11 2 (ICR-) [Curtain Shield Airbag Assembly Circuit RH]
11	BBR-	(R) Red	➔ S8 3 (BBR-) [Front Side Airbag Sensor Assembly RH]
12	FSR+	(W) White	➔ SW1 1 ➳ W3 8 [Occupant Detection ECU]
13	_FSR-	(B) Black	➔ SW1 4 ➳ W3 4 [Occupant Detection ECU]
14	_	_	_
15	_	_	_
