Toyota prius 3rd gen Spiral Cable Sub-Assembly (L52)(L53)(z7)(z8)(z9)(z10)

Toyota prius 3rd gen Spiral Cable Sub-Assembly (L52)(L53)(z7)(z8)(z9)(z10) (84307-74020)

Toyota Prius 3 rd Generation (XW30)

Spiral Cable Sub-Assembly (L52) (L53) (z7) (z8) (z9) (z10)



L52 TERMINALS OF Spiral Cable Sub-Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Wiring (Color Code)
& Color 		Electrical Paths
1 CCS
(R)
Red
➔ 3B 70 ⇔ 3B 58 ➔ 4A 12 ⇔ 4B 83 ➔ L60 23 (CCS) [Driving Support ECU Assembly]

➔ 3B 70 ⇔ 3B 34 ➔ L6 22 (CCS) [Power Management Control ECU]

⚯ z10 3 (ECC) [Spiral Cable Sub–Assembly]
2 ECC (W-B)
White/Black
➔ 3B 68 ⇔ 3A 67 ➔ L93 5 ⬌ L93 3 ➔ ▼ L1 (Ground Point)

⚯ z9 6 (ECC) [Spiral Cable Sub–Assembly]

⚯ z10 4 (ECC) [Spiral Cable Sub–Assembly]
3 TX1 (G)
Green
➔ 3B 71 ⇔ 3B 36 ➔ L27 29 (STRG) [Combination Meter Assembly]

⚯ z9 7 (TX1) [Spiral Cable Sub–Assembly]
4 EAU (P)
Pink
➔ L85 12 ⬌ L85 13 ➔ ▼ L2 (Ground Point)

⚯ z9 8 (EAU) [Spiral Cable Sub–Assembly]
5 AU2 (G)
Green
➔ L41 8 (SW2) [Radio Receiver Assembly]

⚯ z9 9 (AU2) [Spiral Cable Sub–Assembly]
6 AU1 (R)
Red
➔ L41 7 (SW1) [Radio Receiver Assembly]

⚯ z9 10 (AU1) [Spiral Cable Sub–Assembly]
7 R/N (G)
Green
➔ 3B 69 ⇔ 3B 57 ➔ 4A 1 ⇔ 4B 73 ➔ L60 40 (CCHG) [Driving Support ECU Assembly]

⚯ z10 1 (R/N) [Spiral Cable Sub–Assembly]
8 HO (Y)
Yellow
➔ 3B 65 ⇔ 3B 77 ➔ 2A 33 ⇔ 2C 27 ➔ 1G 18 ➤ (HNSW) [Integration Relay]

⚯ z9 1 (HO) [Spiral Cable Sub–Assembly]
9 IG (R)
Red
➔ 3B 72 ⇔ 3B 84 ➔ 2A 32 ➤ (IG) 120A Blade Fuse [IGN]

⚯ z9 2 (IG) [Spiral Cable Sub–Assembly]
10 AC1 (L)
Blue
➔ 3B 66 ⇔ 3B 54 ➔ L20 3 (SWO) [A/C Control Assembly]

⚯ z9 3 (AC1) [Spiral Cable Sub–Assembly]
11 DIST (R)
Red
➔ 3B 64 ⇔ 3B 52 ➔ 4A 11 ⇔ 4B 79 ➔ L60 6 (SPSW) [Driving Support ECU Assembly]

⚯ z9 4 (DIST) [Spiral Cable Sub–Assembly]
12 IL+2 (G)
Green
➔ 3B 62 ⇔ 3B 75 ➔ L88 2 ⬌ L88 1 ➔ 2A 35 ➤ 10A Blade Fuse [PANEL]

⚯ z9 5 (IL+2) [Spiral Cable Sub–Assembly]

Go back



L53 TERMINALS OF Spiral Cable Sub-Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Wiring (Color Code)
& Color 		Electrical Paths
1 D+
(Y-B)
Yellow/Black
➔ L16 5 (D+) [Center Airbag Sensor Assembly]

⚯ z8 2 (D+) [Spiral Cable Sub–Assembly]
2 D- (Y)
Yellow
➔ L16 6 (D-) [Center Airbag Sensor Assembly]

⚯ z8 1 (D-) [Spiral Cable Sub–Assembly]
3 D2- (Y-G)
Yellow/Green
➔ L16 7 (D2-) [Center Airbag Sensor Assembly]

⚯ z7 1 (D2-) [Spiral Cable Sub–Assembly]
4 D2+ (Y-R)
Yellow/Red
➔ L16 8 (D2+) [Center Airbag Sensor Assembly]

⚯ z7 2 (D2+) [Spiral Cable Sub–Assembly]

Go back



z7 TERMINALS OF Spiral Cable Sub-Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Electrical Paths
1 D2-
⚯ L53 3 (D2-) [Spiral Cable Sub–Assembly]

⚯ z7 1 (D2-) [ Driver Side Squib 2nd Step Circuit]
2 D2+
⚯ L53 4 (D2+) [Spiral Cable Sub–Assembly]

⚯ z7 2 (D2+) [ Driver Side Squib 2nd Step Circuit]

Go back

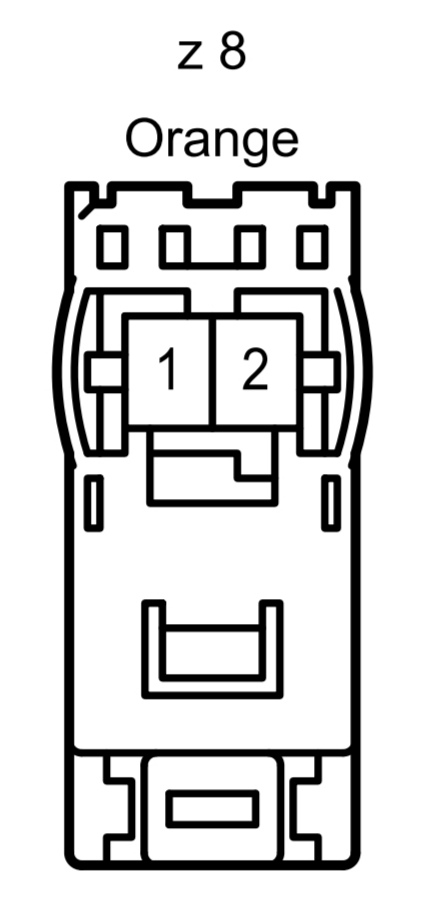

z8 TERMINALS OF Spiral Cable Sub-Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Electrical Paths
1 D-
⚯ L53 2 (D-) [Spiral Cable Sub–Assembly]

⚯ z8 1 (D-) [ Driver Side Squib Circuit]
2 D+
⚯ L53 1 (D+) [Spiral Cable Sub–Assembly]

⚯ z8 2 (D+) [ Driver Side Squib Circuit]

Go back



z9 TERMINALS OF Spiral Cable Sub-Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Electrical Paths
1 HO
⚯ L52 8 (HO) [Spiral Cable Sub–Assembly]

⚯ z9 1 (HO) [ Horn Switch]
2 IG
⚯ L52 9 (IG) [Spiral Cable Sub–Assembly]

⚯ z9 2 (IG) [Steering Pad Switch Assembly]
3 AC1
⚯ L52 10 (AC1) [Spiral Cable Sub–Assembly]

⚯ z9 3 (AC1) [Steering Pad Switch Assembly]
4 DIST
⚯ L52 11 (DIST) [Spiral Cable Sub–Assembly]

⚯ z9 4 (DIST) [Steering Pad Switch Assembly]
5 IL+2
⚯ L52 12 (IL+2) [Spiral Cable Sub–Assembly]

⚯ z9 5 (IL+2) [Steering Pad Switch Assembly]
6 ECC
L52 2 (ECC) [Spiral Cable Sub–Assembly]

⚯ z9 6 (ECC) [Steering Pad Switch Assembly]

⚯ z10 4 (ECC) [Cruise Control Main Switch]
7 TX1
⚯ L52 3 (TX1) [Spiral Cable Sub–Assembly]

⚯ z9 7 (TX1) [Steering Pad Switch Assembly]
8 EAU
⚯ L52 4 (EAU) [Spiral Cable Sub–Assembly]

⚯ z9 8 (EAU) [Steering Pad Switch Assembly]
9 AU2
⚯ L52 5 (AU2) [Spiral Cable Sub–Assembly]

⚯ z9 9 (AU2) [Steering Pad Switch Assembly]
10 AU1
⚯ L52 6 (AU1) [Spiral Cable Sub–Assembly]

⚯ z9 10 (AU1) [Steering Pad Switch Assembly]

Go back



z10 TERMINALS OF Cruise Control Main Switch Assembly CONECTOR

Terminal No Symbol
(Pin Definition) 		Electrical Paths
1 R/N
⚯ L52 7 (R/N) [Spiral Cable Sub–Assembly]

⚯ z10 1 (AU1) [Cruise Control Main Switch]
2 _ _
3 CCS
⚯ L52 1 (CSS) [Spiral Cable Sub–Assembly]

⚯ z10 3 (CSS) [Cruise Control Main Switch]
4 ECC
⚯ L52 2 (ECC) [Spiral Cable Sub–Assembly]

⚯ z10 4 (ECC) [Cruise Control Main Switch]

⚯ z9 6 (ECC) [Steering Pad Switch Assembly]

Go back
